Storage connections

A storage connection links a bucket you own to Rendobar. Jobs read inputs from the bucket and write outputs back to it, so your files never need to be public. After you connect a bucket, reference objects in it with the connection id you chose:

storage://<connection-id>/<path>

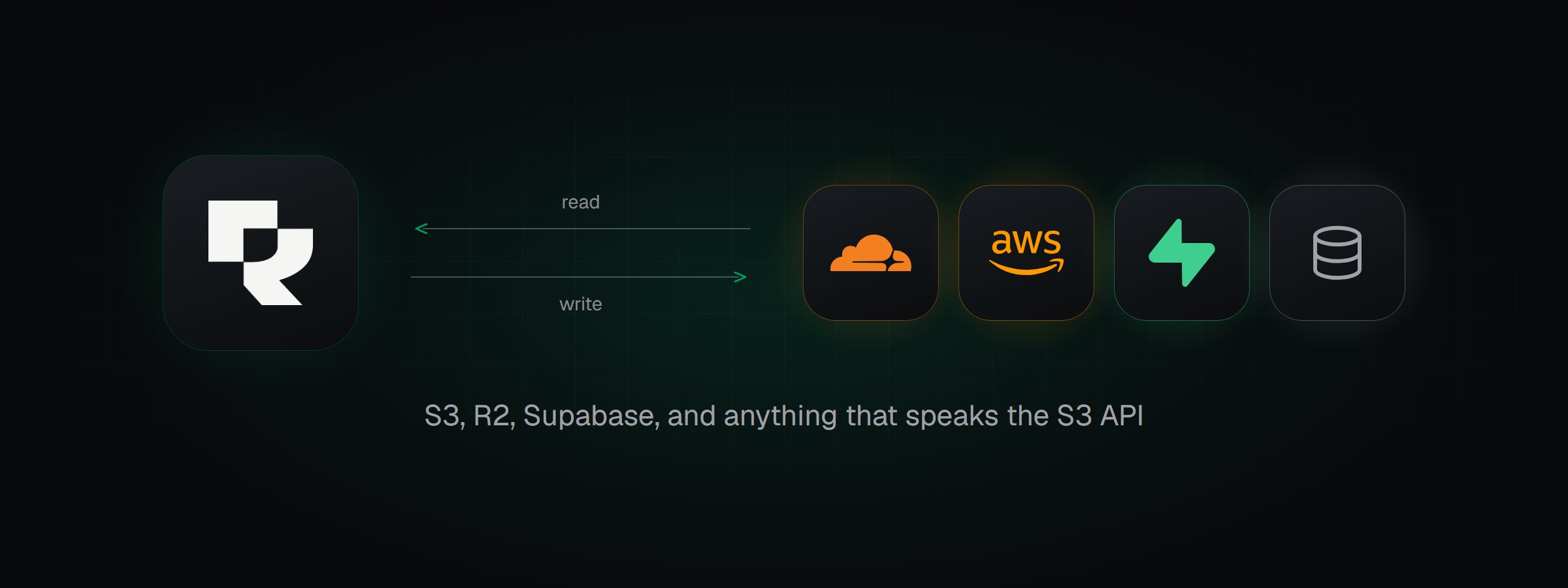

Rendobar connected to Cloudflare R2, Amazon S3, Supabase Storage and any S3-compatible bucket, reading inputs from them and delivering outputs back — Rendobar reads inputs from connected buckets and writes outputs back to them.

Which providers are supported?

Provider	Credentials
Cloudflare R2	R2 API token, or access key and secret
Amazon S3	One-click IAM role, which can be read only, or access key and secret
Supabase Storage	Supabase sign-in, or S3 access keys
S3-compatible	Endpoint, region, and access key pair

Use S3-compatible for any service that implements the S3 API, such as MinIO, Backblaze B2, or Wasabi.

How does a storage connection work?

A connection has three parts:

Part	Role
Bucket	Where jobs read inputs and write outputs
Credential	A key, token, or role that gives Rendobar access. Jobs never receive it
Connection id	The name jobs use to reference the bucket

Connect a bucket

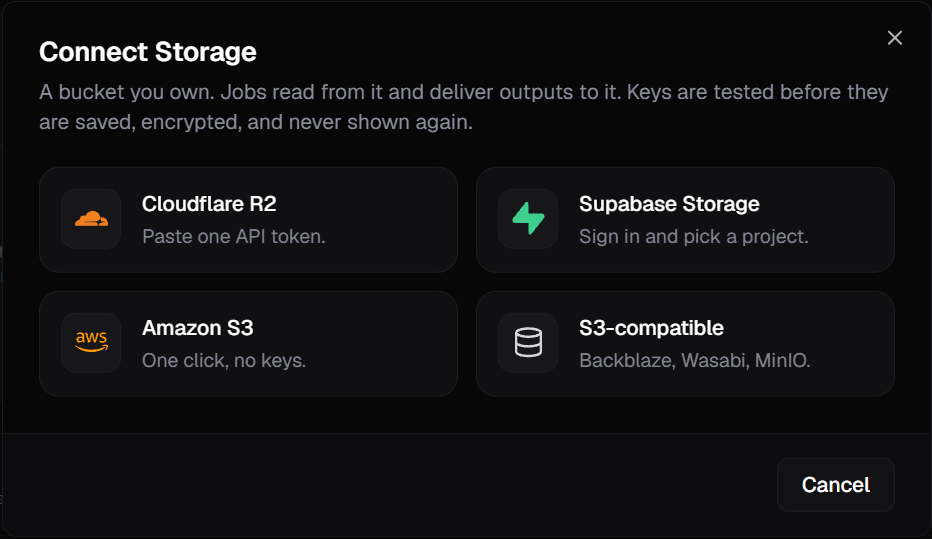

In Storage, select Connect Storage and choose your provider. Each provider page covers the credential it needs.

The Connect Storage dialog with four providers: Cloudflare R2, Supabase Storage, Amazon S3 and S3-compatible — The Connect Storage dialog.

Before saving the connection, Rendobar writes a test object, reads it back, lists the bucket, and deletes the test object. If a check fails, the connection is not created, and the error names the field or permission to fix. To run the checks again, select Test Connection from the connection’s actions menu in Storage, or call client.storage.test(id).

Reference the bucket

Put the connection id in a storage:// URI, followed by the object’s path in the bucket. For example, storage://demo-bucket/raw/clip.mp4 is the object raw/clip.mp4 in the connection demo-bucket. If the path contains %, ? or #, write those characters as %25, %3F and %23. For example, storage://demo-bucket/raw/clip%231.mp4 is the object raw/clip#1.mp4. The Storage page, the Playground and the Rendobar clients write them this way for you. Rendobar suggests an id from the bucket name, and any id must match [a-z0-9-]{2,40}. Jobs use the id, not the credential, so you can rotate a credential without changing any job.

Use it in a job

A storage:// URI works anywhere a job accepts a file URL. Put it in inputs to read an object, and in destinations to write the output:

import { createClient } from "@rendobar/sdk";

const client = createClient({
  apiKey: process.env.RENDOBAR_API_KEY,
});

const job = await client.jobs.run({
  type: "ffmpeg",
  inputs: { source: "storage://demo-bucket/raw/clip.mp4" },
  params: {
    command: "ffmpeg -i source -vf scale=1280:-2 out.mp4",
  },
  destinations: ["storage://demo-bucket/exports"],
});

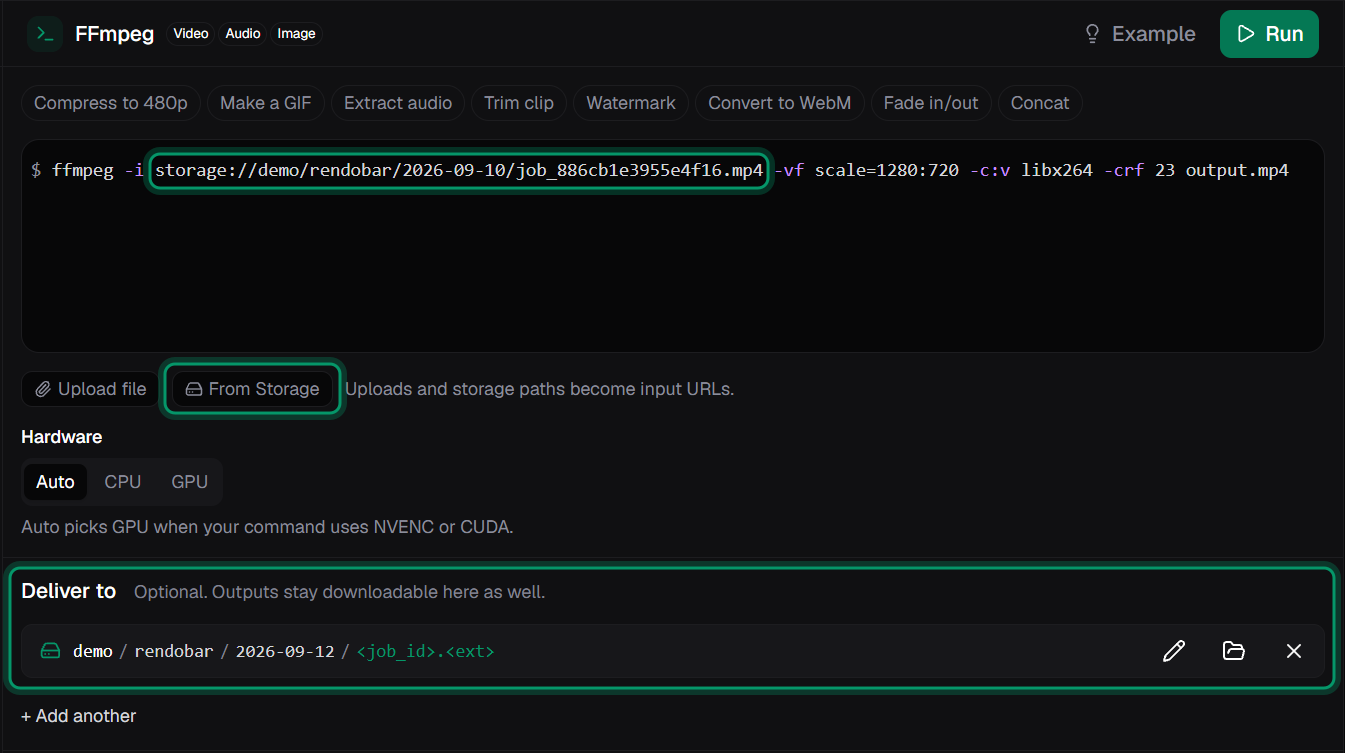

The same URIs work in the MCP server. Call list_storage to get the connection ids. In the Playground, you can pick the input and the destination instead of typing URIs.

The Playground ffmpeg job with a storage:// input in the command, the From Storage button, and a Deliver to destination in the demo connection — An ffmpeg job with its input as a storage:// URI, picked with From Storage, and its output destination under Deliver to.

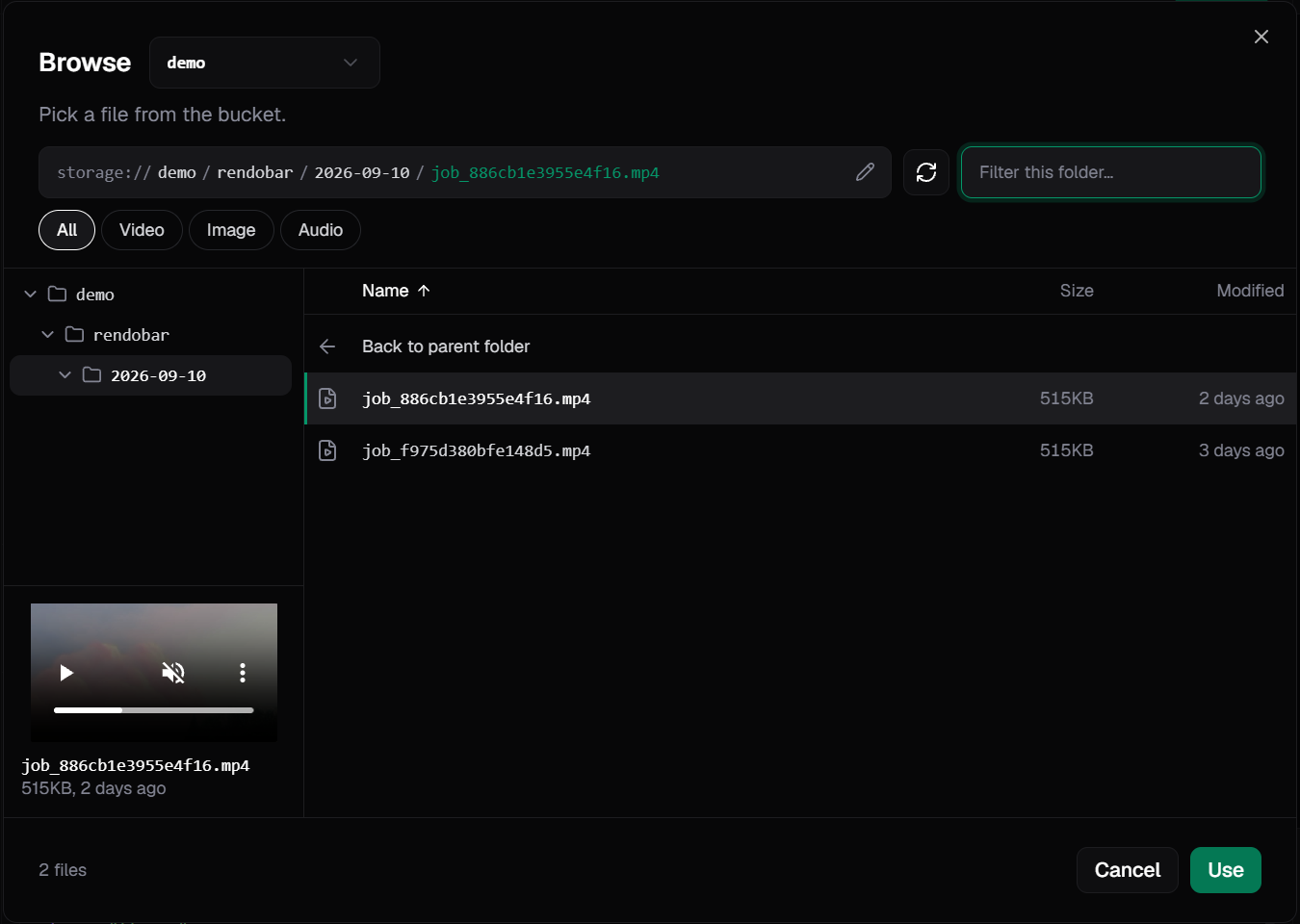

To pick the input, select From Storage, choose a file, then select Use.

The Browse dialog with a video file selected in the demo connection, its storage:// path shown above the listing and a preview under the folder tree — Picking an input file from a connected bucket.

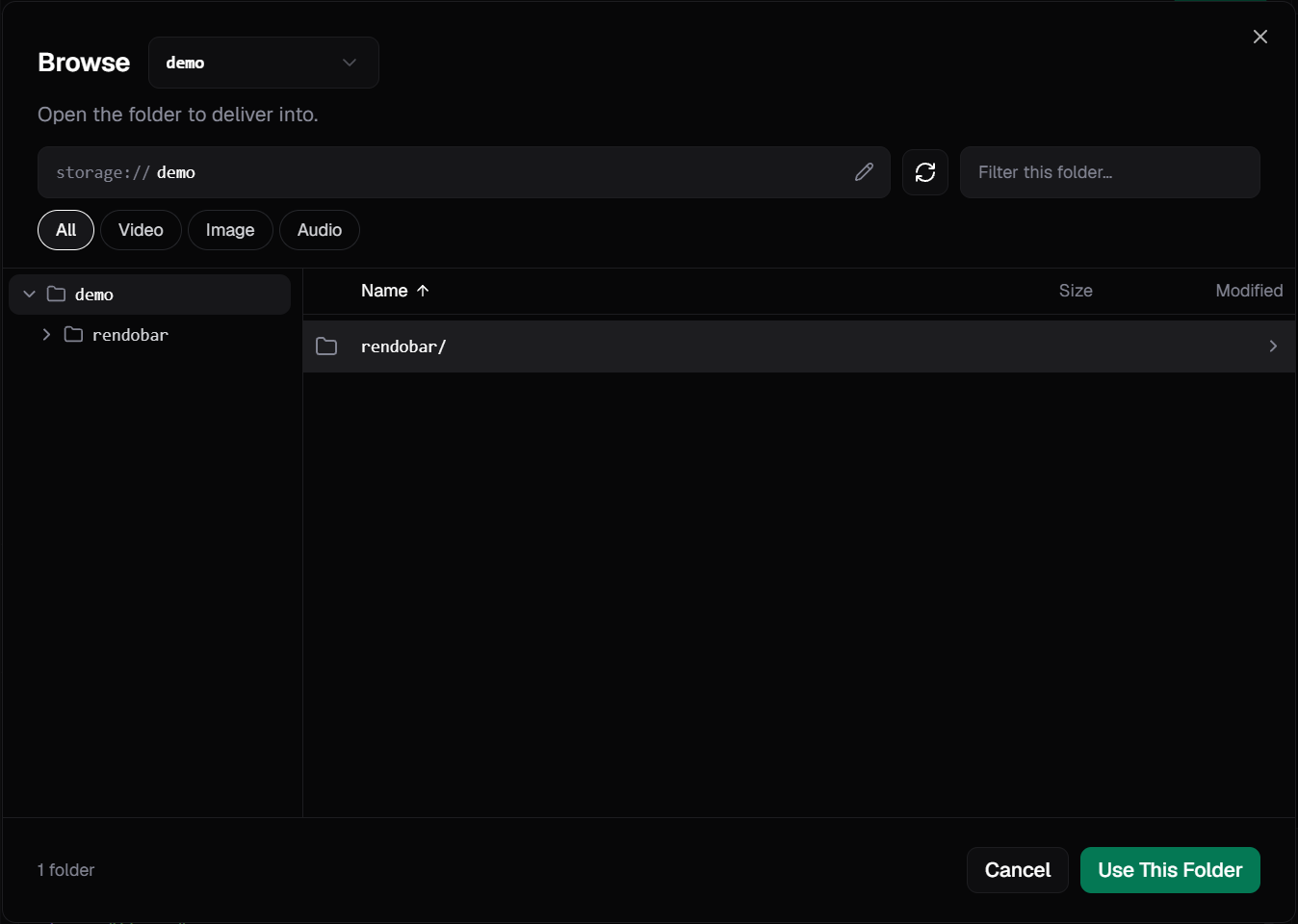

To pick where the output goes, select the folder icon (Browse folders) on a destination under Deliver to, open a folder, then select Use This Folder.

The Browse dialog in folder mode for the demo connection, showing the rendobar folder — Picking a folder to deliver the output into.

What happens when the job runs

For the job above, which reads from the bucket and writes back to it:

You submit a job that uses storage:// URIs.
Rendobar starts the job and gives the job runner a signed URL for the input. The URL covers one object and expires, so the runner never holds your credential.
The job runner downloads the input through the signed URL and runs the job.
The job runner uploads the output to Rendobar. This copy is output.file.url.
Rendobar writes the output to your bucket with the connection’s credential. This copy is deliveries[].url, and the result is reported as a delivery event.

Delivery settings

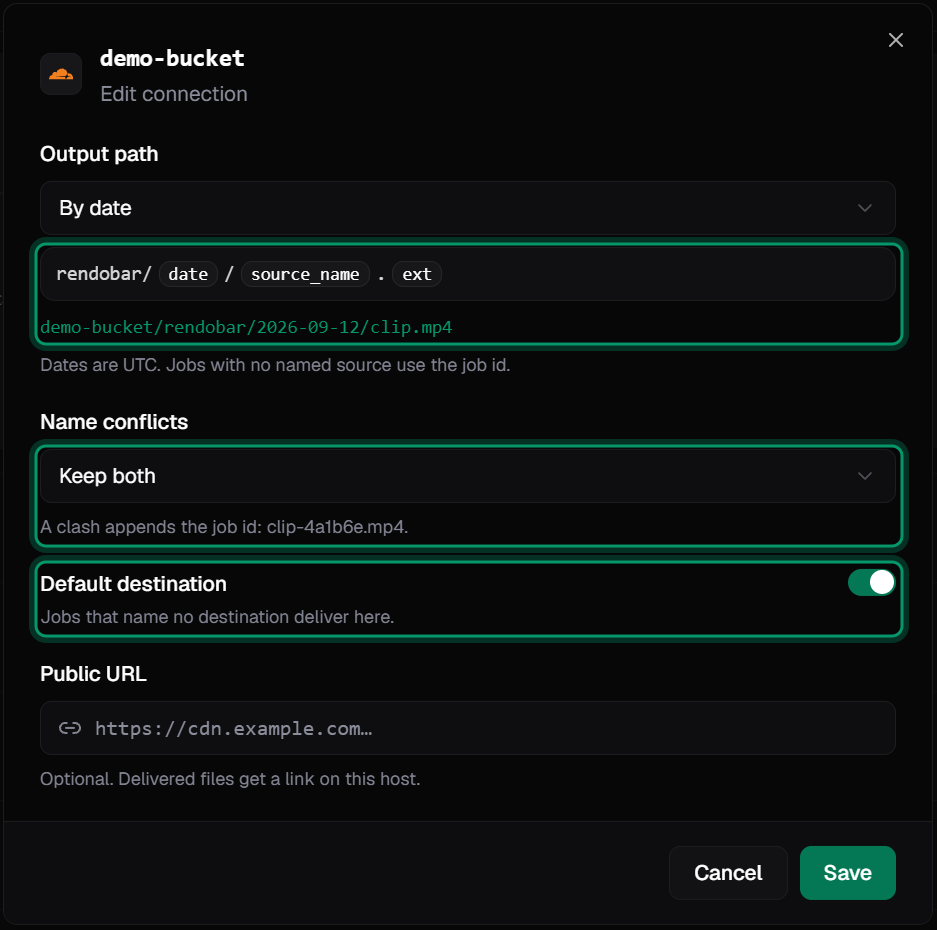

Each connection has four delivery settings. To change them, select the connection in Storage, then select the edit icon on the Delivery card.

Output path

The output path is a template. New connections use By date, which is rendobar/{date}/{source_name}.{ext}. The dialog also offers Flat, which is rendobar/{source_name}.{ext}, and Custom template.

Token	Value
`{job_id}`	The job id, such as `job_ee14ffeecc3f4a1b`
`{ext}`	The output file extension, without the dot
`{source_name}`	The input file name, without its extension
`{date}`	The UTC date, as `YYYY-MM-DD`

The destination in a job decides how much of the template applies. For a connection using By date, and an input named clip.mp4:

Destination	Uses	Writes
`storage://demo-bucket`	The connection’s template	`rendobar/2026-09-12/clip.mp4`
`storage://demo-bucket/exports`	The folder, then the template’s file name	`exports/clip.mp4`
`storage://demo-bucket/exports/{job_id}.{ext}`	The path as written	`exports/job_ee14ffeecc3f4a1b.mp4`

A path that contains a token, or ends in a file name, is used as written. Any other path is treated as a folder.

Name conflicts

A template without {job_id}, including By date, can produce a key that already exists. Name conflicts decides what happens.

Setting	Behavior
Keep both	The default. Appends the last six characters of the job id, so `clip.mp4` is written as `clip-4a1b6e.mp4`
Replace	Overwrites the existing object

Replace permanently overwrites the existing object unless the bucket has versioning turned on. Keep both needs a bucket that supports conditional writes. On a bucket that does not, Rendobar replaces instead.

Default destination

When Default destination is on, jobs that do not set destinations write their outputs to this connection. Only one connection per organization can be the default, so turning it on for one connection turns it off for the others.

Public URL

By default, a delivery’s url points to Rendobar. Set a public URL to return links on your own host instead, such as https://media.example.com/exports/clip.mp4. It must use https and cannot point to a private or internal host. Leave it empty for a private bucket. Inputs and outputs still work, and only the returned url changes.

Delivery results

A completed job lists one entry in deliveries for each destination:

{
  "deliveries": [
    {
      "storageId": "demo-bucket",
      "status": "delivered",
      "path": "exports/clip.mp4",
      "url": "https://media.example.com/exports/clip.mp4"
    }
  ]
}

Field	Description
`storageId`	The connection id
`status`	`pending`, `delivered`, or `failed`
`path`	The key written, after the template and any rename
`url`	The public URL if one is set, otherwise a Rendobar URL
`reason`	Why the delivery failed. Present only when `status` is `failed`
`renamed`	`true` when Keep both added a suffix

output.file.url and deliveries[].url point to the same content. The first is a Rendobar URL that expires at output.expiresAt. The second points to the copy in your bucket, which Rendobar does not delete. deliveries is returned by GET /jobs/{id}. It is not in the job list response, and it is absent when a job has no destinations. In the dashboard, a job’s Deliveries section shows each destination’s status and failure reason, and Retry Failed retries the failed ones.

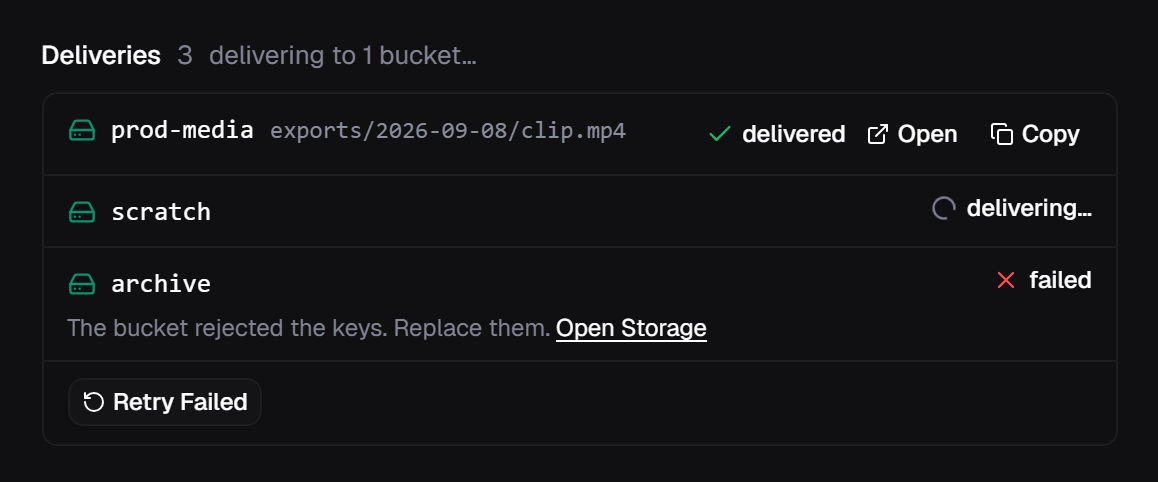

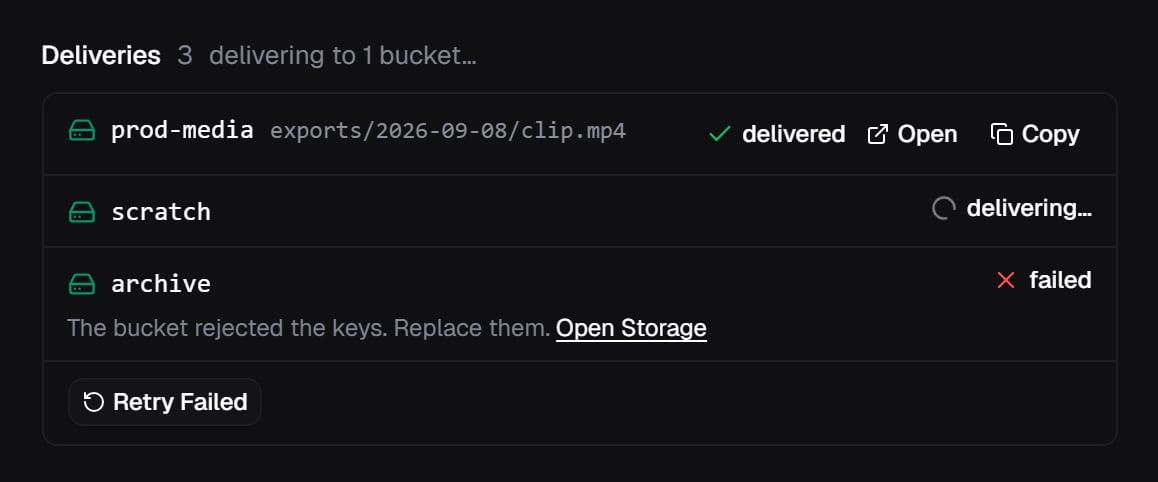

The Deliveries section of a job listing prod-media as delivered, scratch as delivering, and archive as failed with the reason and a Retry Failed button — A job's deliveries: one delivered, one in progress, and one failed with its reason.

Delivery events

A job is complete before its deliveries start, and a failed delivery does not change the job’s status. Webhooks can arrive in any order, including job.completed. Wait for job.deliveries_settled to know every destination is done. It is sent once, after the last destination resolves, and carries every outcome, so the order of the other events does not matter. It is the only delivery event a per-job callback.url receives. Jobs with no destinations do not send it. To retry failed deliveries, call client.jobs.retryDeliveries(id) or POST /jobs/{id}/deliveries/retry.

Delivery errors

A failed delivery includes one of these reason codes. Rendobar never forwards the bucket’s own error text.

Reason	Cause	Fix
`destination_denied`	The credential cannot perform this operation on the bucket or path	Grant read and write access to objects in this bucket
`signature_mismatch`	The bucket rejected the request signature	Check the access key, secret, and region, or issue a new credential
`bucket_not_found`	No bucket with that name exists at the endpoint	Reconnect using the bucket’s current name
`already_exists`	An object already exists at that key	Add `{job_id}` to the output path, or use Keep both
`object_too_large`	The bucket rejected the object as too large	Check the bucket’s object size limit, or reduce the output size
`destination_unavailable`	The bucket returned a 429 or 5xx, did not respond, or an attempt stopped without finishing for 30 minutes	Rendobar retries automatically. Retry manually if it stays failed
`not_deliverable`	The job produced no file	Expected for jobs that return data only, such as `ffprobe`

Errors returned when you create a connection are listed in error codes.

How are credentials stored?

For connections that use keys, Rendobar stores the access key and secret, encrypted with AES-256-GCM. No API endpoint returns them. A one-click AWS role stores no keys, because Rendobar assumes the role when it needs access. Some providers issue a different kind of credential, such as a Cloudflare R2 API token. Rendobar uses it once to get an S3 key pair, then discards it. A Supabase sign-in is used once to read the project’s API keys, then discarded. See what Rendobar stores for Supabase.

Rotate a credential

Select Replace Keys from the connection’s actions menu in Storage, or call client.storage.update(id, { credentials }). Rendobar runs the access checks on the new credential before saving it. The connection id stays the same.

Revoke access

Delete the token, key, or role in the provider’s console. The connection stops working immediately. Deleting a Rendobar connection also stops access, but it does not invalidate the credential. If you use the credential anywhere else, revoke it at the provider too.

SDK methods

Listing and reading connections needs the storage:read scope. Connecting, testing, changing and deleting them needs storage:write and the owner or admin role. See scopes.

Method	Description
`client.storage.list()`	List the connections in the organization
`client.storage.get(id)`	Get one connection
`client.storage.create(params)`	Connect a bucket. Fails if an access check fails or the id is taken
`client.storage.update(id, params)`	Replace the credential or change delivery settings
`client.storage.test(id)`	Run the access checks again
`client.storage.listObjects(id, params)`	List folders and objects in the bucket
`client.storage.stats(id)`	Get delivery activity for the connection
`client.storage.delete(id)`	Remove the connection. The bucket is not changed

Cloudflare R2

Connect an R2 bucket with an API token or an access key pair.

Amazon S3

Connect an S3 bucket with a one-click IAM role or an access key pair.

Supabase Storage

Connect a Supabase bucket by signing in or with S3 access keys.

S3-compatible

Connect MinIO, Backblaze B2, Wasabi, or any other S3-compatible bucket.

Jobs

Where inputs and destinations appear in the job payload.

Webhooks

Receive an event when a job completes.

Errors

Error codes returned when you create or test a connection.

MCP server

List connections with list_storage and use them from an agent.

Guides with measured results

Save FFmpeg output to S3

Three ways to get output into a bucket, and what pipe-safe MP4 flags cost.

Process video from an S3 bucket

Run past Lambda’s 900-second limit with a storage input.

Thumbnails from S3 uploads

Trigger a thumbnail job from an S3 event without black frames or duplicates.

Video APIs that deliver to your bucket

13 services compared on keys, roles, and reading inputs from your bucket.
